• There were circumstances were the Feed positioning axis accuracy could decrease unacceptably by Processor making multiple calls to the BEND axis when the BEND axis was returning to ZERO, and the Feed/Rotate axes began to move at the same time.



• After several tests, we have confirmed that this version of CNC Bender completely RESOLVES the issue.



• We discovered this problem running on a new high-speed Pro-face operator station running LiteControl.


• We are convinced that this issue could occur in any bender with newer software being run in a fast Pro-face control.



• The issue is directly linked to:

1. The "Don't Move if Within Position Tolerance Of" value in the AXIS configuration file - where axis moves are skipped when they are already in position.


2. ...Combined with situations where multiple axes are called simultaneously in the same COMDEF (like when the bend arm is returning and the Feed/Rotate axis starts up).



• The "Dont Move If Position Within Tolerance Value" value is no longer used


• This resolves issues discussed in the previous section.


• This line can be safely removed from all future main.axislist files



This feature was originally introduced in version CNC Bender ProControl 10.0.6.0jkm in November of 2006. It was intended to reduce problems with the axes floating near zero, and Absolute moves having difficulty determining which way to move into position. (For example, the Feed axes could attempt to run backwards behind zero under very rare circumstances until version CNC Bender v11-20091201, where all axes are now kept far from internal zero.)

Because of version CNC Bender v11-20091201, and because of the problem induced by this option (as discussed above), it was removed from CNC Bender.

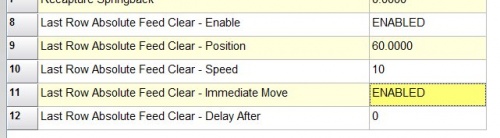

• We discovered that the switch to the [BEGIN RUN AGAIN] label did not occur until after the second time through the processlist. This increased time slightly, and sometimes caused the bend arm to pause on the way to the home position when the "Last Row Absolute Feed Clear - Immediate Move" was ENABLED.



• This problem has been resolved. Parts now run faster on the second time through the process, and the bend arm motion will not be stopped and restarted while returning.



Explanation of Feature: As of version CNC Bender v11-20091104, CNC Processlist Builder inserts a new [BEGIN RUN AGAIN] label placed in the middle of each part's process list to trim off processing time. This allows CNC Processor to skip the initialization section of each new part after it has been run once.
