Revision: Benderlink for Chiyoda/Keins 6.94

Revision 6.94 Back to Benderlink for Chiyoda Back to Benderlink for KEINS Back to Benderlink for Chiyoda/KEINS Revisions

UPDATED - The Embedded VTube-STEP is Now Version 2

The previous Benderlink had included version 1.99. This version includes VTube-STEP version 1.99 that improves the calculation of centerlines from rough solid models. This new version is embedded in this version of Benderlink. See VTube-STEP v1.96, VTube-STEP v1.97, and VTube-STEP v1.99 for detailed update information.

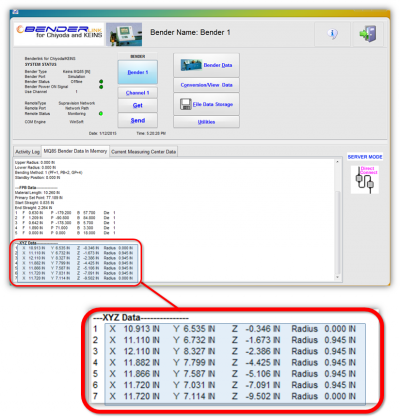

ENHANCED - Transfer of XYZ Data from Measuring Centers

Handling XYZ Data Transfers XYZ data is now transferred in both directions for storage in both the touch-screen bender controls and in Benderlink data files. Handling RADIUS Data Transfers (For Radius Values Sent with the XYZ Data) The RADIUS values sent with the XYZ data are stored only in the Benderlink data files. They are not transferred to the bender control. This ensures that the original design values are always returned to DOCs software during DOCs data RECALLS. This feature was added for the Hexagon ROMER DOCS measuring software which requires that the MASTER XYZ and XYZ RADIUS data be returned from the bender during RECALL transfers.

NEW: About Button

An About button is added to the main interface in the top right corner. This allows you to check the current version of Benderlink at any time.
