New - Bend Reduction Formula Editor
Predicting elongation in a tube shape requires complex mathematics that changes per customer application. Benderlink for SolidWorks now allows operators to program their Bend Reduction formula into the program. This is the Bend Reduction Function editor:
Read details about the editor here: Bend Reduction Editor
Redesigned - SVNET Setup Menu
Objects have been re-arranged in the menus to allow for more logical placement on the screen in Benderlink. Objects have been moved new SVNET Setup menu
There are three sub-menus in the SVNET menu:
- Network Path - Setup for the common SVNET path for communications

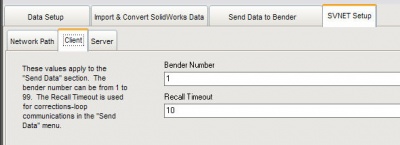

- Client - Setup for features where Benderlink calls out to the bender or sends data to the bender.

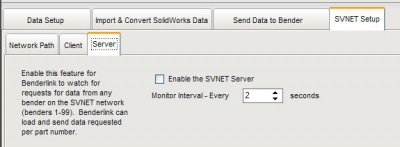

- Server - Setup for Benderlink's ability to respond to commands from the bender.
