Gears view small.pngSee the NEW Advanced Tubular HELPSITE here.

VTube-LASER measures tube shapes by connecting to FARO ScanArms, HEXAGON (formerly ROMER) Absolute Scan Arms, and KREON Scan Arms with integrated scanners, and MicroScribe Arms with ball probes.

VTube-LASER AssemblyOverModel.png


Quick Link for Videos


Quick Links Other



Partners and Distributors

VTube-LASER Computer with Four Arm Brands.png

  • FARO - FARO markets articulated arms. FARO actively promotes VTube-LASER as a preferred tube fabrication solution with FARO arms.
  • HEXAGON - HEXAGON ROMER Absolute Arms can be sold with VTube-LASER either separately or in the VTUBE-iMC system.
  • Revware - Revware sells the MicroScribe arms. Revware can sell VTube-LASER.
  • Horn Machine Tools - HMT Benders and CSM Benders
  • UNISON - All electric benders from the UK
  • SMI- Italian line of Silver benders
  • CRIPPA - Italian benders


Compatibility With Other CAD Packages




Discussions About Measuring Approach



Tutorials and Information




SAMPLE TECH SUPPORT CASES

Read through these case reports to learn how we solved issues for customers.



BENDERLINK: Linking to Benders for Bender Setup and Corrections



SOLIDWORKS Related


HEXAGON Absolute Arm (formerly "ROMER") Absolute Arm Related




VTube-LASER Accessories



Performance



Diagnostics

VTube-LASER Setup

How To Use VTube

Qualifying Tube Shapes with VTube-LASER

Diameter Cut Plane Topics

Scan Score

Stripe Cut Plane

Dual Cylinder Fit Topics


Importing Data


Tutorials


VTube Related Program IDs Used for Licensing

PID Program Licensed
354 VTube-STEP
356 VTube-LASER
360 VTube-LASER Programmer


Executive Summary

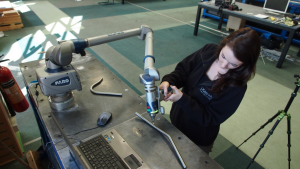

VTube-LASER uses the laser scanner and/or ball probe to:

Faro edge scanning tube unison.png
  1. Measure tube, pipe, and wire shapes
  2. Qualify the shape or path of the part based on centerline tolerances
  3. Correct bending machines
  4. Reverse-engineer existing parts
  5. Print reports
  6. Quickly import and export tube data from other software
  7. Remove the need for tube fixtures and gauges to qualify parts.


Example VTube-LASER Clients and Applications

Airlines

VTube-LASER is used by British Airways to measure tube from planes for retrofit. See the FARO blog for details of the British Airways application.

VTube-LASER is also used at US-based airlines for the same purpose.

Britishairways 747 pixabay.png


Aerospace

VTube-LASER is used to inspect tubes for military drones. The tubes are aluminum, titanium, or inconel. Sometimes these tubes are longer than the reach of the arm, so this customer uses the VTube-LASER Leapfrog capability.

Predator drone.png

Excavators

VTube-LASER is used to check the hydraulic lines for excavators. The tubes usually have baked-on yellow or black paint.

Komatsu excavators.png

Truck Frames

VTube-LASER is used to measure pre-hydroformed truck frames to adjust benders so that the pipe fits into pre-crush presses.

Metalsa truck frame.png

Truck Fuel and Brake Lines

VTube-LASER is used to measure tube for the large truck industry. This customer replaced a MM5000 measuring center with a FARO-VTube-LASER system to adjust a bank of benders that are connected directly to VTube-LASER.

Paccar trucks.png

Mining

VTube-LASER measures tubes for the mining industry. This customer measures very long large diameter pipe on the shop floor.

Mining industry.png

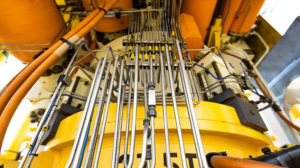

Undersea Oil

VTube-LASER is used to measure tubing that surrounds undersea oil caps with hundreds of hydraulic lines.

Undersea oilcap christmastree.png


Some Key Features of VTube-LASER

Benefit 1 - Super Quick Project Setup

Other measurement programs are often more generic in their approach to geometry. In order to measure a tube, it is necessary to build up individual elements and create a script for the process.

Because VTube assumes that you will be measuring a tube shape, the project setup is very quick and easy - saving hundreds of steps required in other programs.

Vtube-laser xyzmaster.jpg

Benefit 2 - Built-in Automated Process for Measuring Tubes

You don't have to guess at the order of the steps to measure a tube. When you measure a tube with VTube, the methods for gathering the information and calculating the centerline, intersection points, and bend data are preprogrammed as a series of consistent steps that never change and never have to be scripted.

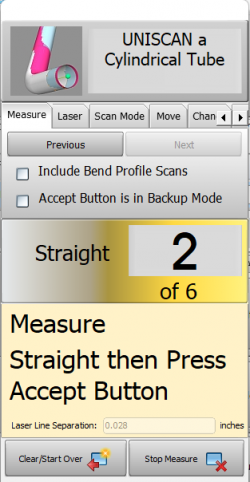

VTube knows what you should give it, and it will always request that data in order using the Measure a Tube control window.

Vtube-laser measureatube control1.png

Benefit 3 - Built in Feedback to Increase Confidence in the Data

VTube-LASER has special procedures that help anticipate the level of confidence you will have in the incoming data. There are series of crosschecks just for measuring tubing, both mathematical and on-screen, that allow users to know if the data is good.

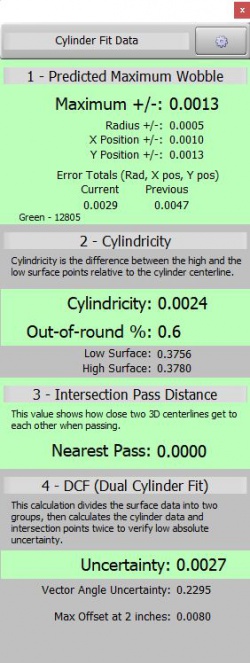

For example, the Cylinder Fit Data window shows the accuracy of the centerline calculated from cylinder points by reporting the X and Y wobble deviations.

Vtube-laser cylinderfitwindow12.jpg

Benefit 4 - Built-in Bender Correction

VTube-LASER knows how to correct benders - and has special menus and procedures for doing that well.

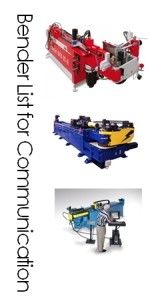

See a list of benders for communication

Vtube-laser benderlist.jpg
