This is a single port Benderlink Ethernet Module that works with Benderlink for Pines to connect a TS-2000 (Pines) control to an Eaton Leonard Vector 1 measuring center.

This device is 100% Eaton Leonard Vector 1 Compatible. Any standard Vector 1 bender port can connect with this module. It is placed near the Vector 1 Laservision measuring center.

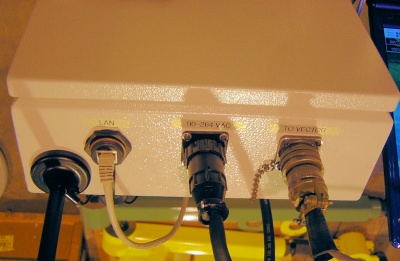

About the Connections

• One RJ-45 port - This connects to the Ethernet.
• One Military Connector - This connector follows the legacy Eaton Leonard style connection. You can connect standard communications cable with circular connectors at either end.
• One Power Port - Any voltage from 90 to 264 VAC accepted.

Inside the Module

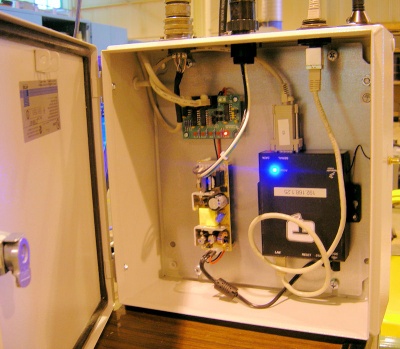

This is an image of the inside of the module. The Current Loop board is in the upper left corner. The Ethernet Serial Device Server is the black box on the right. The power supply is on the lower left.

Example Installation

This is an image of the box installed on a test bench computer running Benderlink for Eaton Leonard, which simulates Vector 1 Laservision communications.

Purchasing

This item can be purchased from our Online Store

Other Pages

• Benderlink Current Loop Module page
• Benderlink page
• Read more about the current loop board here: Communications Board for Eaton Leonard - CB-EL1
