CNC Bender v11-20080725

From ATTWiki
Jump to: navigation, search

Cncbender logo pushbending.png

Operatorstation model.jpg



CHANGES to CNC BENDER

Check.jpg New HELICAL/COIL Capability in Push Bending

  • It is now possible to induce a TWIST while push-bending. The result is helix and coil shapes of all sizes.
  • New Grid Mode buttons let you select rows or edit data


Demo Video of Push Bending Changes

View this video to see the changes demonstrated to Push Bending Profile Setup in CNC Bender.

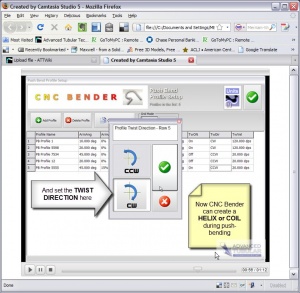

Cncbender pushbend profile setup newfeatures.jpg

Check.jpg Formalization of Robot Integration Standard

Advanced Tubular and SMT spent scores of hours thinking through the robot integration standards that we use and have derived a new standard called "Robot Type 1" for integration with both LOAD and UNLOAD robots.

See the Robot Integration Standard 1 page for details on this robot standard.

Industrial robot.jpg



Check.jpg New Output Diagnostic Tool in Low Level

This new diagnostic tool is designed to allow experienced technicians to directly control ANY output on a bender. This is a very powerful feature that resides in the passworded Low Level menu in order to keep it from non-experienced operators.

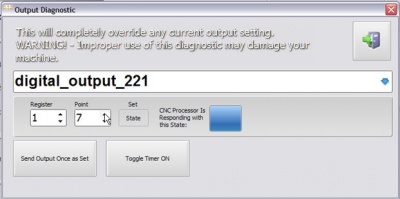

Cncbender output diagnostic v11-20080725.jpg

View a video demonstrating the tool.



Check.jpg New Robot 1 Manual Page

A new tab menu is added to the Manual page that allows operators to

  • open and close the robot grippers
  • send the robot to its home position

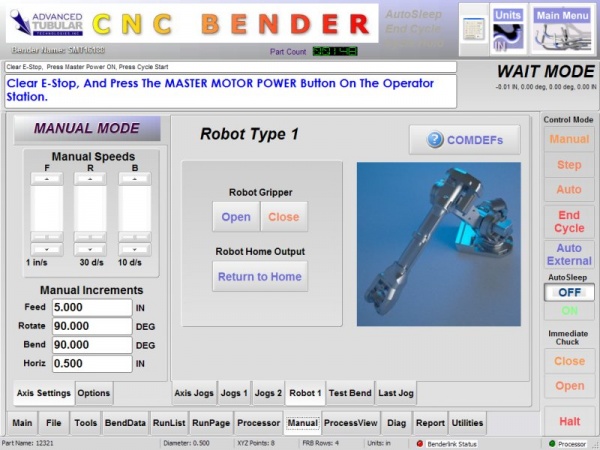

Cncbender manual robot1 page.jpg



Check.jpg New Check for Missing Help Files

CNC Bender uses hundreds of help files for on-screen help. The software now checks for and reports any missing help files in a immediate message box when the software is loading.

Cncbender helpfilereport.jpg





Check.jpg Change - Keyboard Append Mode in Alpha

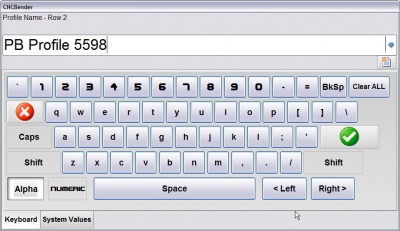

The keyboard now defaults to "append" mode when using the ALPHANUMERIC mode. Operators will no longer need to press the right arrow before appending text in the keyboard. (Note: The older default "overwrite" mode is still active in NUMERIC mode.)

Cncbender keyboard alphanumericmode.jpg




Check.jpg Change - Stop CNC Processor Update From Tool Page During AUTO

CNC Bender now stops the update of CNC Processor from the Tool page when CNC Processor is in AUTOMODE. A message displays asking the operator to update CNC Processor again when in MANUAL mode.
