CNC Bender v11-20081001

This update includes modifications to:

- All Executables in the CNC Bender System

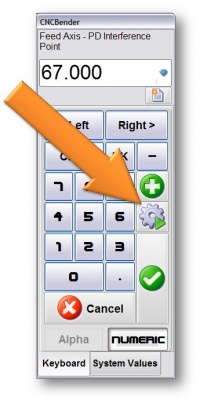

NEW - DIRECT AXIS CLIPBOARD

Jog from anywhere there's a keypad - then insert the position value of any axis in the editor!

This feature allows you to jog any axis from inside the keypad, then extract its value to the current keypad entry box

This is a full screen example of the Direct Axis Clipboard used in the Tool page. Teach positions like LOAD and START in PreBend. Teach positions like Maximum Bend Angle in the Tool Page

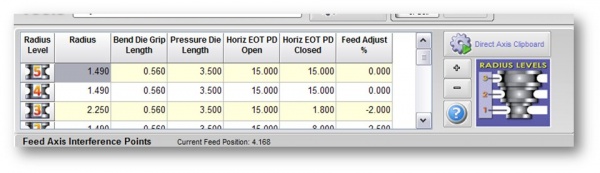

NEW - UNLIMITED RADIUS LEVELS

Previous versions of CNC Bender allowed up to 3 bend radius levels. Now the Tool page now allows you to program any number of bend radius levels. This is an image showing 5 levels The tool page now displays the radius levels in the grid from the bottom up, just like they are placed on the bender.

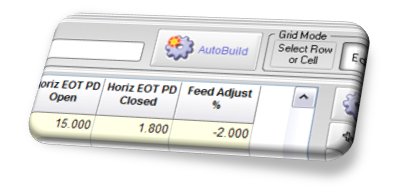

NEW - TOOL PAGE AUTOBUILD

Previously, the only place that an AUTOBUILD could occur was in the BEND DATA menu. Now it can also happen from the Tool page.

NEW - FEED ADJUST PERCENT MOVED TO TOOL PAGE

The new Tool page includes the Feed Adjust Percent values moved from the Overall to the Radius Level grid.

This allows the number of values to grow or shrink with the current radius level count.

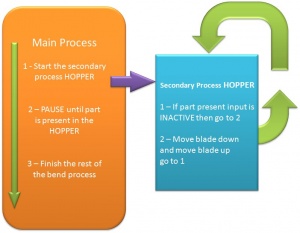

NEW - STANDARD HOPPER LOGIC

New hopper logic was standardized in this version. See hopper logic for details.

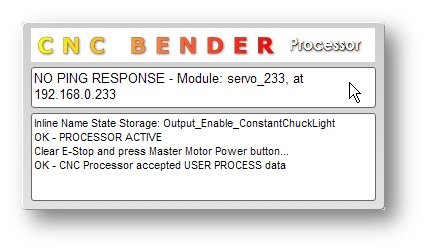

REVISED - SMALLER PROCESSOR MESSAGE WINDOW

The new smaller Processor Message window now takes up less screen space.
