CNC Bender v11-20090609
NEW - MORE Automatic Chuck Close Modes
There are more modes in automatic chuck close that allow you control when the automatic chuck close occurs.
NEW - Seam Detect Mode in PreBend Dynamic Options
The seam detect logic was ported into the latest version of CNC Bender from the older LiteControl platform. This logic allows for seam detection logic modes including the capability of rotating the tube in the rotation spindle until the seam/scribe/etch is located.
Please see CNC Bender Seam Detection for details.
 |
 |
NEW - PreEnable Process List
The Pre Enable Proceslist allows for setting PID values BEFORE the axes are enabled. This allows the customer to quickly change the In Position Band value of any axis before the axis is enabled.
The first application of this is to allow for quick changing of the in position band of the bend axis from 1 degree In Position Band to 0.5 or 0.25 degrees.
//==================================================== //** PID Setup Section ** // Choose only one of three //==================================================== //[display] PID Bend Axis - Set to 0.5 Degree Precision PID Bend Axis Full Degree Precision //PID Bend Axis Half Degree Precision //PID Bend Axis High Precision
NEW - Added Operators to the [IF] and [IFNOT] Blocks in the Process Lists
When using the pos() command in an IF block of code, the following operators are now allowed:
- <
- >
- <=
- >=
- =
When using two character operators, it is important that there are no spaces between the two characters, or preceding the first character. Here is an example:
[IF] or, pos(1)<= 100 DO This [END]
NEW - Inputs that are TIMERS can now be a TYPE of "BEGIN"
END-style timers pause after all outputs have been activated in a COMDEF. They cause the COMDEF to pause before the next step begins. The new BEGIN-style input timers pause BEFORE any outputs or servo commands are activated in the COMDEF. The timers are always set from the beginning of the COMDEF.
REPAIRED - Manual Time Out Values Controlled By Low Level Hydraulic Value
The manual timeout values were always set to 6 seconds. Now they are set to whatever is programmed in the Low Level Compiler tab.

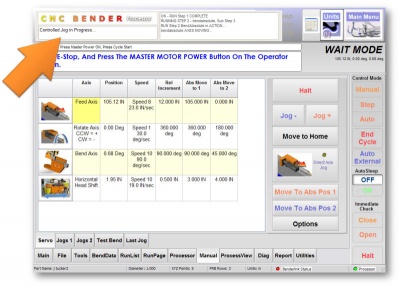

REPAIRED - Redesigned Processor Floating Message Window
The floating message window used to show processes in action has been resized to be less obtrusive to other screens.
