CNC Bender v12-20100303

Type of Upgrade: Significant Upgrade Benderlink is significantly improved

IMPROVED - New BENDERLINK Features Make Data Transfer Easier Than Ever

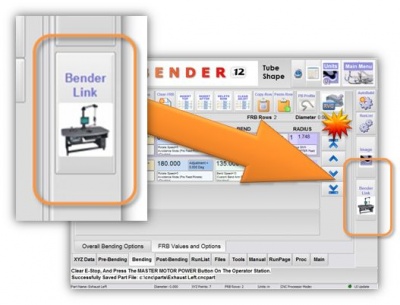

Benderlink is now part of CNC Bender and is available as a sub-menu to the FRB page. It has support for Eaton Leonard VECTOR and ROMER Supravision Nework protcols. Benderlink is an add-on feature to CNC Bender ProControl and LiteControl software packages.

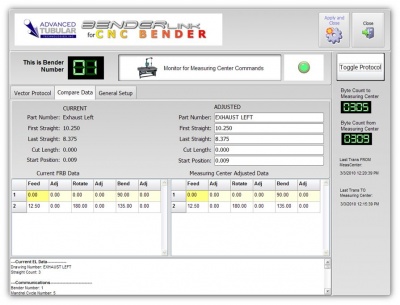

The most powerful addition is the new COMPARE feature. You can compare and edit data that was received from the measuring center before it is accepted for use inside CNC Bender Pre-Bending and FRB pages. Apply the data to the main database after you give it final approval: Or you can just press "Close" to skip the transfer.

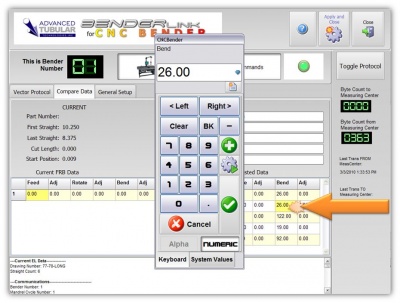

Any ADJUST value can be edited before sending the data to CNC Bender. New BYTE COUNTERS clearly show any activity in real-time

License Control Changes

Applies to... Benderlink Push Bending Pressure Die Assist Realtime Variable Gearing Now these three options have their own program ID in dongles. If the IDs are present in the dongle, then these features are enabled (or allowed to be enabled) automatically. This helps us manage licenses for these features and allows us to enable these features more quickly with an e-mailed file if you add them to your bender control.

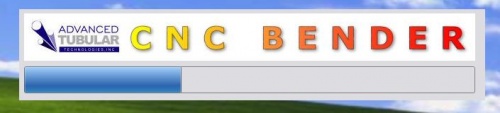

IMPROVED - Closing Progress Bar is Much Quicker

The closing progress bar runs much quicker than it did in previous versions.

Miscellaneous Changes

Removed CNCBenderlink.exe file Removed blip.wav from the blinksound folder Changed the two wave files for Benderlink in the blinksound folder to ping.wav and transcomplete.wav. Made the two wave files into fixed names inside Benderlink logic. Added DLL support for high-speed serial interface (for Eaton Leonard Vector protocol) Added a new benderlink.rtf help file that describes how to use the new Benderlink Added completely new fields to the Benderlink.cfg file in the config folder Adjusted the logo in the splash screen upward.
