Difference between revisions of "VTube-LASER v2.9.11"
(→25pxNEW - HERBER Bender Setup From Solid Model Through a Network (VTube-LASER or VTube-STEP)) |
(→25pxNEW - VTUBE-LASER TUNED TO WORK WITH THE NEW FARO 6.1.2.7 USB DRIVER) |
||
| Line 98: | Line 98: | ||
<br><br> | <br><br> | ||
| − | ==[[image:Check.jpg|25px]]NEW - | + | ==[[image:Check.jpg|25px]]NEW - (NEW VALUE) MAXIMUM NUMBER OF POINTS ALLOWED IN END SCAN LASER STRIPE== |
<table cellpadding=10 width=900> | <table cellpadding=10 width=900> | ||
| Line 105: | Line 105: | ||
<td width=400> | <td width=400> | ||
| − | + | This was added because the ROMER RS4 scanners give VTube-LASER too much data for end-stripes, thus slowing down the graphics engine and measuring process.<br><br> | |
| + | The LASER point filter value solves this problem by limiting the number of points in a stripe down to a reasonable number for VTube-LASER.<br><br> | ||
<br><br> | <br><br> | ||
| − | + | If you are using the recommended end-scan technique, then we recommend that the value be no more than 50. | |
</td> | </td> | ||
<td> | <td> | ||
| − | [[image: | + | [[image:vtl_v2.9.11_endscan_stripe_point_limit.png|600px]] |
</td> | </td> | ||
</tr> | </tr> | ||
Revision as of 20:29, 22 July 2018
|
Revision 2.9.11Release Date: July 20, 2018
|
|
NEW LASER SCAN LOGIC FOR RECTANGULAR AND SQUARE TUBES
|
IF YOU MEASURE SQUARE TUBES WITH THE LASER SCANNER, THEN THIS IS AN IMPORTANT UPDATE FOR YOU. The rectangular and square LASER scanning logic is much improved over the previous version. If you can square or rectangular tubes, then this version is especially important for you. |
|
NEW - RECTANGULAR PROBE OFFSET DIRECTION LOGIC CORRECTED
|
IF YOU MEASURE SQUARE TUBES WITH THE BALL PROBE, THEN THIS IS AN IMPORTANT UPDATE FOR YOU. We discovered that the rectangular and square tube measurements might project the planes to the wrong side of the ball probe. This incorrect compensation would cause the centerline to shift by up to double the ball diameter. This has been fixed in this version. |
|
NEW - STAR TECNOLOGY Bender Corrections Through a Network (VTube-LASER Only)
|
We added the STAR EVO SVNet file correction support that allows VTube-LASER to correct STAR EVO benders through a network connection automatically.
Bender corrections only work through VTube-LASER. (Not VTube-STEP) |
|

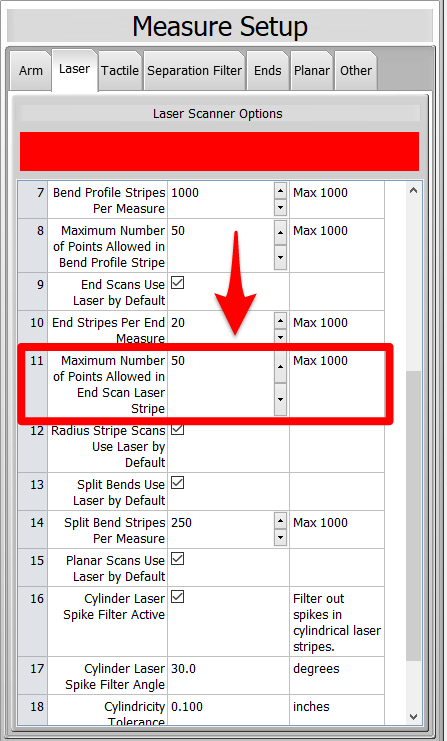

NEW - (NEW VALUE) MAXIMUM NUMBER OF POINTS ALLOWED IN END SCAN LASER STRIPE
|
This was added because the ROMER RS4 scanners give VTube-LASER too much data for end-stripes, thus slowing down the graphics engine and measuring process. |
|
OTHER CHANGES
